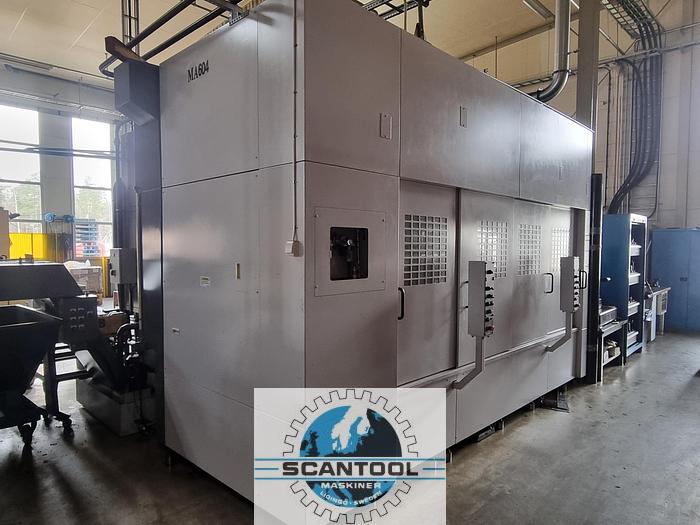

2007 Okuma MA 600 HB

Make                                                                    OKUMA

                         Model                                                                   MA 600 HB

                         y.o.M.                                                                   2007

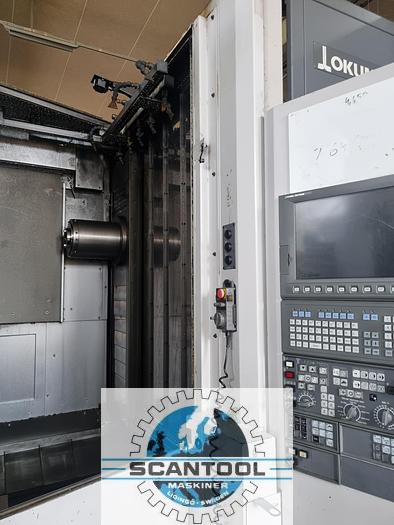

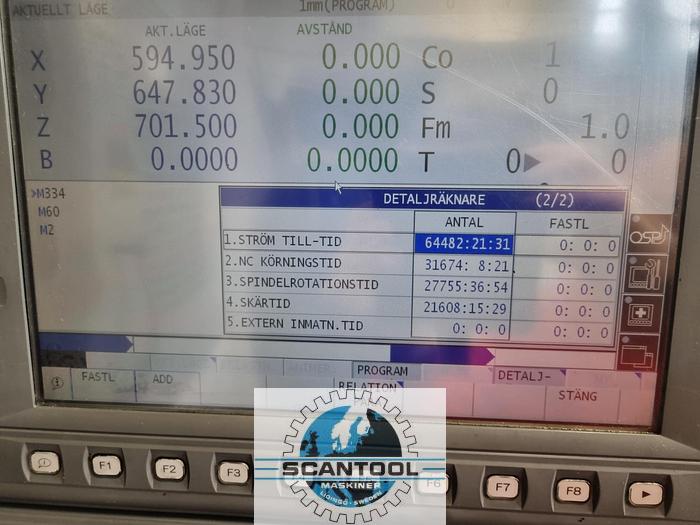

Data:                control                                                                  OSP P-200M

                         Pallet size                                                             630 x 630 mm

                         No. Of Pallets                                                      12 off

                         Pallet changing time                                            12 sec.

                         Pallet index                                                          1°

                         Pallet load                                                            1200 kg

                         Traverses X/Y/Z                                                  1.000/900/1000 mm

                         Feeds X/Y/Z                                                         1 - 60.000 mm/min

                         Rapids                                                                  60 m/min

                         Spindle power                                                      32/22 kW

                         Spindle speed                                                       6.000 rpm

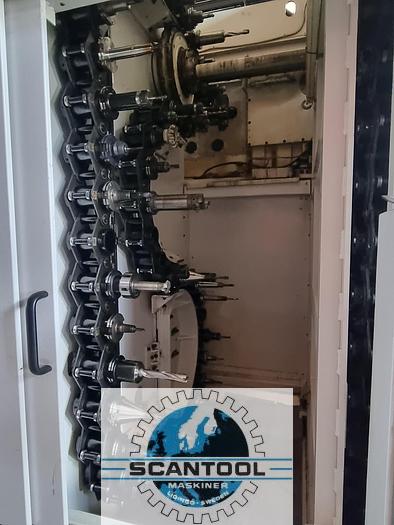

                         No. Of Tools in magazine                                   200 off

                         Tool taper                                                             ISO DIN-50

                         Max Tool weight                                                  25 kg

                         Max Tool length                                                  450 mm

                         Max Tool diameter  full/empty                          140/240 mm

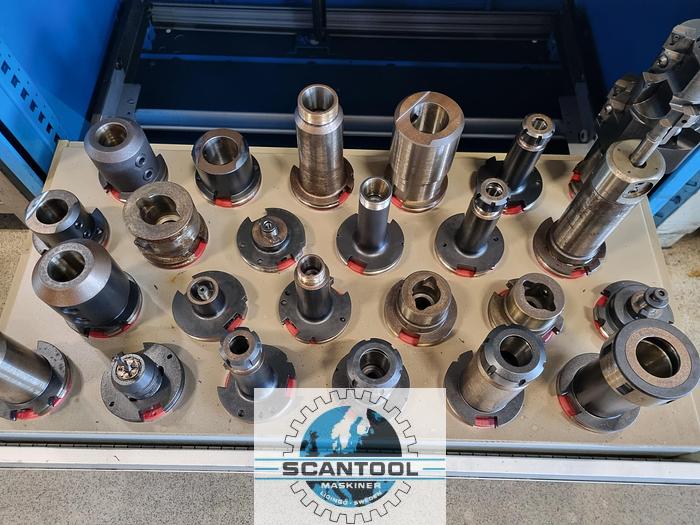

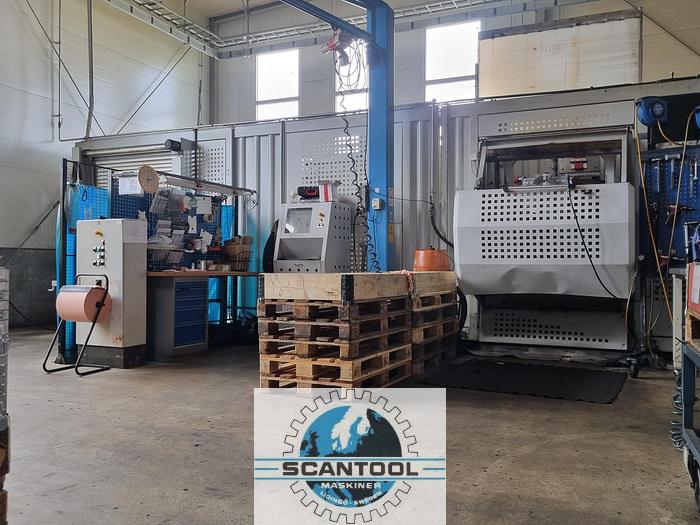

Equipment:      Swarf conveyor, Coolant/spindle 50 bar, Schower coolant from roof, Hand gun for coolant, Auto tool measurement tool breakage control, Automatic zero point eith measuring probe Renishaw MP 10, Ethernet-version for connectionof Fastems Container system and DNC, MOP-Tool adaptive sensor for cutting force, Extra M-Code 8 off. The machine has a Fastems Container system with 2 loading stations. Aprixiametly 280 tool holders will follow with the machine. The machine can also be easily converted to run as a 2-pallet machine.
